Pipeline Pigging SystemCrucial Part of Your Pipeline Operation Integrity; Safe, Reliable and Sustainable
Pipeline pigging systems are the heart and soul of any pipeline. They are the crucial part for the operation. Pipeline pig stations are used for pipeline inspection, cleaning, maintenance and help flow of multiple products at the same time.
Due to the increasing safety, environmental and operational cost, pipeline operation is more expensive than before. Todays’ pipeline operators are looking for more reliable, safe and sustainable solutions.
Thanks to 40 years of experience, ERGIL provides unique solutions for pipeline pigging stations.
Custom-made Modular Skid Systems
- Pig Launcher & Pig Receiver
- Pig Trolley & Jib Crane
- Quick Opening Closure
- Pig Signallers
- Valves, Gauges, Indicators
- Control Panel
- Interlocking Mechanism
- Skid Mobile or Fixed Frame & Components
- Adjustable Legs
- Lightning & Earthing
Certified High Pressure Pig Launcher & Receiver
ERGIL has been designing and fabricating engineered to order high pressure vessels since 1982. Pig launcher & receiver is the most important part of the pigging system.
Designing and manufacturing high pressure pig launchers & pig receivers requires certain specialization that has to be accredited by industrial authorities.
ERGIL designs and manufactures pressure vessels up to 690 bar with maximum thickness 150 mm.
Our fabrication facility and personnel are certified with ASME U, S, R, NBR, GOST, AD 2000/ISO 3834, EN 1090-1, EN ISO 3834-2, & DNV GL + ABS Marine Welding Class Program and capable of designing and manufacturing as per ASME, EN, GOST & as per end user requirements; such Shell DEP.
Modular Skid Pig Launcher & Receiver Systems

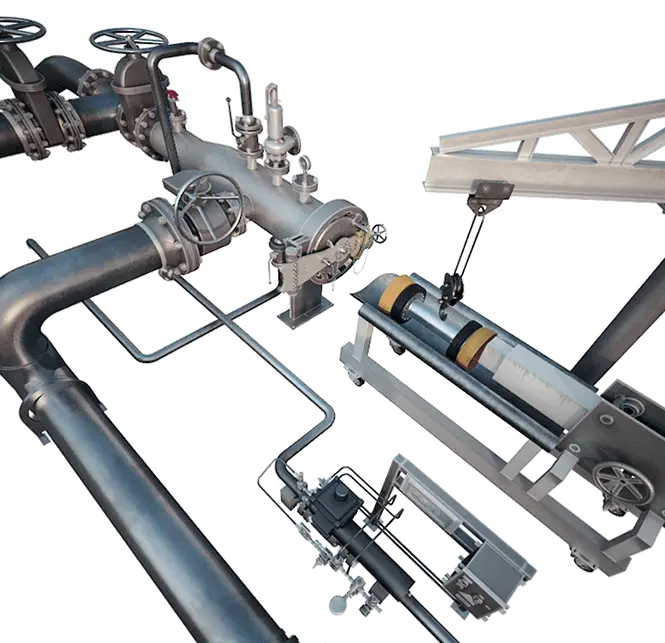

ERGIL’s modular pigging stations provide all you need on a single skid. ERGIL designs mobile or permanent frames with adjustable height mechanisms, so moving from one place to another and using it for multiple pipelines is possible.
They are easy to transport from one location to another. Modules can be designed as per the shipping method (sea, road and even air) and the system can be customizable as per working environment to protect against rush weather effects or robbery.
Traditional pigging system contraction is costly, takes time, and safety concerns are high, however ERGIL’s mobile modular skid pig launcher & receiver plug and play systems can reduce your project cost and time drastically in addition to eliminating site accidents. Contractors do not need to deal with site installation of such complicated systems.
Pipeline Pigging System Models
Pig Launcher & Receiver
Pipelines are an essential part of the oil and gas industry and are the primary means of chemicals, gas and liquids transportation such as crude oil, natural gas, and even refined products. However, building a pipeline network is an expensive investment. Maintaining this investment well and following its security is an import...
Pig Handling System
Pig Handling Equipment is used for insertion and retrieval of Pipeline Pigs from Pig Launcher / Pig Receiver. These systems help you to handle, load, and unload the pigs without using man power and minimize the work accidents, provide safety and convenience of operation conditions. ERGIL Pig Handling Systems, help you to han...
Quick Opening Closure

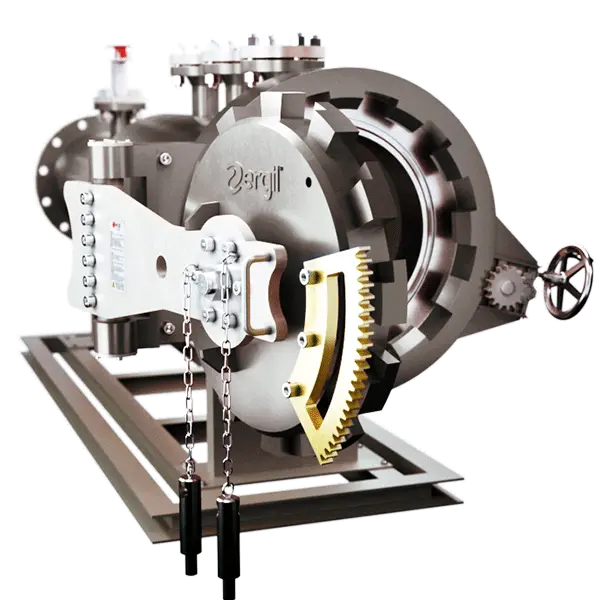

ERGIL is a world leader in the manufacture of quick opening closures. ERGIL RX closures are high pressure quick opening closures (QOC) supplied in the vertical or horizontal configuration. ERGIL RX ® is designed to be opened and closed by one person in a minute without utilising additional tools. We aim to develope products a...
ERGIL provides pig signals / indicators for pipeline industry for the extreme conditions. Pig indicator is a device that is used on a pipeline to show an indication to operator during the pipeline pigging. ERGIL Pig Indicator is a economical solution that can be applied all kind of pigging systems. Design & Benefits Ergil Pig...
Quick Opening Closures & Interlocking System; Safety is Our Top Priority
ERGIL’s RX Closure is highly used with not only pig launcher & receivers, but also with various kind of pressure vessels; such as filters, separators, coalescers, autoclaves … etc RX Closures are highly respected in oil, gas, chemical and marine industries thanks to its safety mechanism.
Bayonet type closures come with triple safety mechanisms and additional interlocking if required. It can be manual or automatic to minimize operational accidents.
It plays a crucial safety role for pig launchers & receivers’ operations. High pressure is very risky to handle. Closure itself should not be opened under pressure and avoid any incident.
RX Closures are designed to withstand high pressure - as per customer requirement - and does not leak, because of unique seal lip design.
For better safety operations, ERGIL offers a complete closure and valve interlocking system that works as per required sequence.
System helps anyone to open a pig trap closure or valve when the system is pressurized; therefore, forces the operator to follow a certain order.
We work closely with your valve suppliers and make sure they consider interlocking system requirements.
Our dedicated supervisors install and test interlocking systems in-house or at your site.
ERGIL designs and manufactures pressure vessels up to 900 bar with maximum thickness 220 mm. Our fabrication facility and personnel are certified with ASME U, S, R, NBR, GOST, AD 2000/ISO 3834, EN 1090-1, EN ISO 3834-2, & DNV GL + ABS Marine Welding Class Program and capable of designing and manufacturing as per ASME, EN, GOST & as per end user requirements; such Shell DEP.
Fully Automated Systems
Are you interested to control your pigging operations automatically and monitor operations from your control room? System can also be monitored and controlled from our smart App and send SMS or e-mail notifications. ERGIL provides full automated pig launcher and receiver systems that can be integrated into your existing control system. Having an automated system helps you to reduce man power manual help, accident risks and equipment hazards.
ATEX Certified SCADA Control Panel
Skid system comes with an ATEX certified SCADA control panel, hydraulic controlled automatic quick opening closure and pig trolley. System works with Modbus communication or similar protocols allowing remote reporting of all events.
Quick opening closure opens automatically when there is no pressure in the pig trap, then the pig trolley places the pig inside the quick opening closure and QOC closes automatically.
Once, the system analyzes safety requirement and pressure ratings through sensors and actuator pressure relief valves, launches the pig and finally the pig indicator sends a signal to the control room, when it passes through the scrubber.
Control unit captures the real time data. Besides traditional models, wireless controlled data transfer is also available upon customer request.
Industries We Serve
ERGIL, as an engineering & fabrication partner with extensive knowledge of sea port terminals, tank farms, refineries, loading and unloading stations, water facilities, chemical process storage facilities as well as with flexible adaptable economical solutions, we can support your specific applications for following industries: Oil & Gas, Chemical & Petrochemical, Water & Waste Water Treatment, Mining & Construction, Marine & Offshore, Industrial Process, Pharmaceutical.
In ERGIL, protecting environment is our number one priority and we are contributing to save water, soil and air with the products we have been producing.
ERGIL skid pig launchers & receivers are one of those products and they are also designed to protect the environment.
Skid acts like a contamination basket and collects unwanted pipeline dirt and oil, so they do not spill and harm the soil or sea water for off-shore applications.
Baskets can be easily transferred to the recycle area and recycling material is being converted into harmless, even sometimes helpful substance.
Our environmentally friendly products also help to companies and systems to follow legal regulations. ERGIL goes hand by hand with their customers to leave a better world to next generations.
Operating a highly sophisticated equipment requires constant monitoring, however we know that it is not the case for usual daily operations, therefore we manufacture the best products with low operating and maintenance cost.
- We provide spare parts from our stock
- Provide emergency services
- We do yearly maintenance contracts
- Support you for site installation, supervision and commissioning
Our relationship with our customer does not end with delivering the product. We always care about that customers must feel trust and comfort due to working with us, and that keeps going on during lifetime. We are always with after customer also at after-sales processes and we are always open to get feedback to raise our standards higher. We are supporting you in your spare part & maintenance needs and in case of updating your system and product.
One of a Kind Fabrication Facility
ERGIL is a leading expert in fabrication of custom process equipment, storage tanks, pressure vessels and heat exchangers with the highest quality standards of design, material, fabrication and installation. We offer in-house custom production including design, fabrication and installation of carbon steel, stainless steel, aluminum and exotic alloys in our 38,000 m² manufacturing facility located at Mersin on the Mediterranean coast of Turkey.
Mersin has the biggest sea ports and major train hup with 800 km distance to Zakho/ Iraq border, 300km to Syria border and 900 km to Istanbul by road. It is Turkey’s gateway to major sea roads. As a modern facility it is equipped with the latest technology, including fully automated welding, rolling, CNC plasma cutting, shot blasting, heating, painting system and lifting machines. We are also capable of handling in-house pressure testing, radiography, and other non-destructive tests.
Majnoon Oil FieldMajnoon, Iraq
Engineering, design, and Fabrication of complete skid Mounted 360 bar 12 nos pig Launcer and receiver system, including valves, transmittals, interlocks. End User: Shell. Location: Majnoon, Iraq.
Location: Majnoon, Iraq
Bas Op Well Connections ProgramYemen
2500# High pressure pig launcher and receiver engineering, design, fabrication of high pressure skid mounted pig launcher and receiver system including with quick opening closures, fully integrated interlocking system, valves, instrumentation, and electrical. End User: TOTAL E&P. Location: Yemen.
